• True diversity wireless digital pilot tone for enhanced signal and interference resistance.

• Automatic frequency tracking for stable output and improved reliability.

• 1280 frequency points in 42MHz bandwidth, supporting over 16 simultaneous channels.

• 225 selectable address codes; 20 user frequency groups and 10 channel configurations.

• Automatic idle channel selection and PC connection for scanning and assignment.

• Quick automatic scanning to identify interference-free channels.

• PC interface for detailed monitoring and control.

• 4 built-in EQ settings for customizable audio.

• 3 noise gate thresholds for clearer communication and reduced noise.

• Saves and retrieves up to 10 preset configurations.

• Independent monitoring output for real-time audio checks.

• 3 power settings on the transmitter for distance adaptability.

• 5-segment battery and audio level displays on receiver and transmitter.

• User name setting with six-character (0-9 or A-Z) options.

• Dual rotary switch with drop-down menu for easy operation.

• OLED display on receiver; LCD display on transmitter for clear status overview.

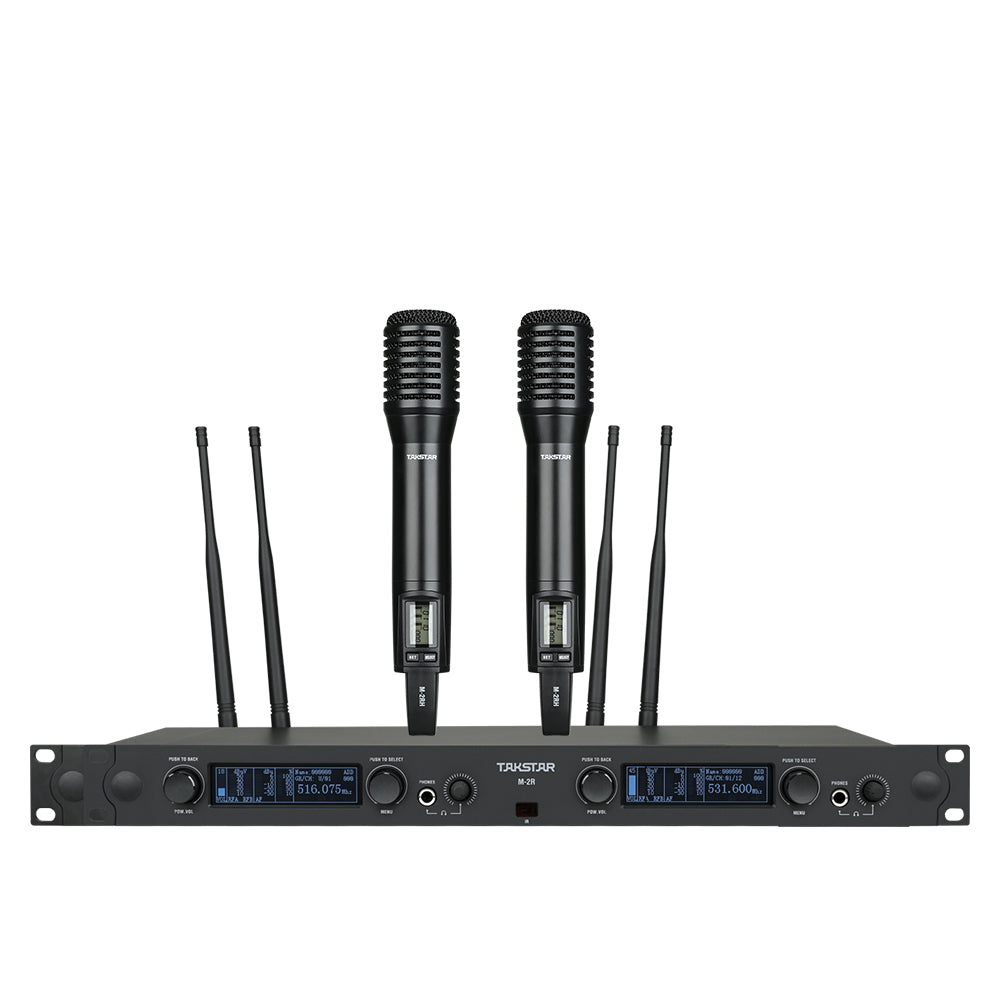

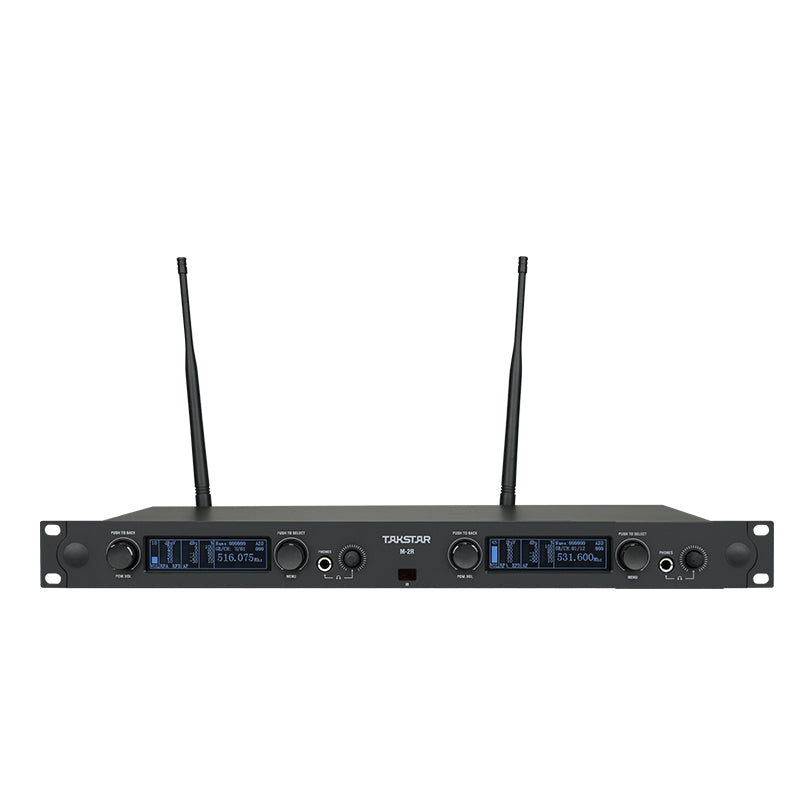

Receiver
• Frequency Range: 516-558MHz
• Maximum Channels: 1280
• System Compatibility: Supports 8 devices operating simultaneously
• Frequency Response: 50Hz-16kHz (±3dB)
• Frequency Bandwidth: 42MHz
• Total Harmonic Distortion: <0.5%
• RF Sensitivity: < -104dBm
• Audio Output Level: 10dBu Max
• Operating Distance: 100m
• Signal-to-Noise Ratio: ≥110dB (A)
• Product Dimensions: 482*160*44mm

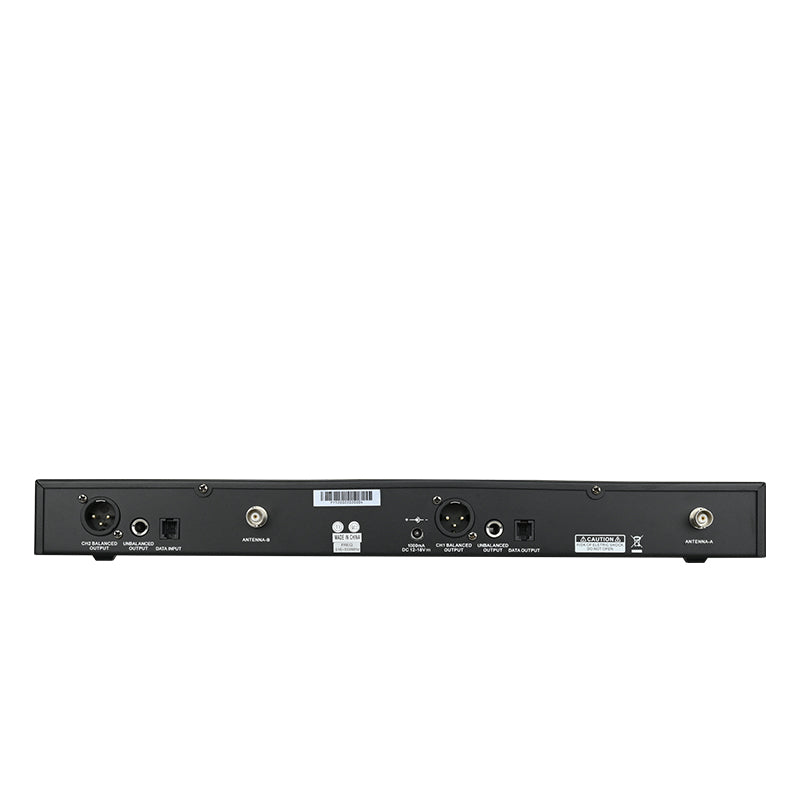

• Output Interface: 2× Ø6.35mm unbalanced outputs, 2× XLR balanced outputs
• Power Requirements: DC12V/18V-1A
• Product Weight: Approx. 2600g

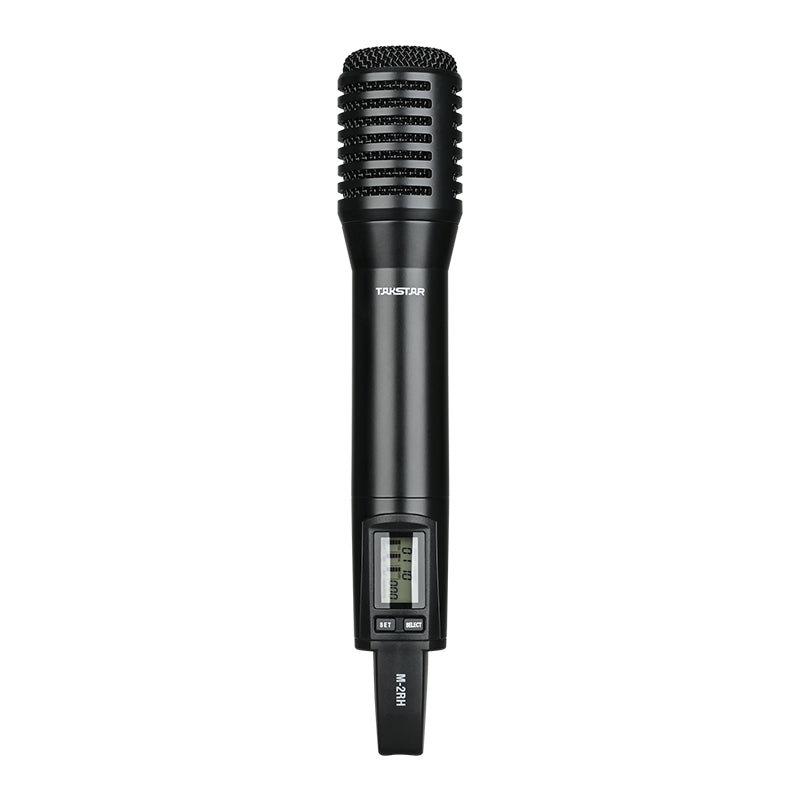

Handheld Transmitter
• Frequency Range: 516-558MHz
• Frequency Bandwidth: 42MHz
• Maximum Deviation: ±60kHz
• Gain Adjustment Range: 0/-10/-20/-30/-40 dB
• RF Power: 10mW/30mW/50mW
• Frequency Response: 50Hz-16kHz (±3dB)
• Display Type: LED
• Battery Spec: 2×1.5V AA alkaline
• Operating Time: >8 hours
• Product Weight: Approx. 350g (excl. batteries)

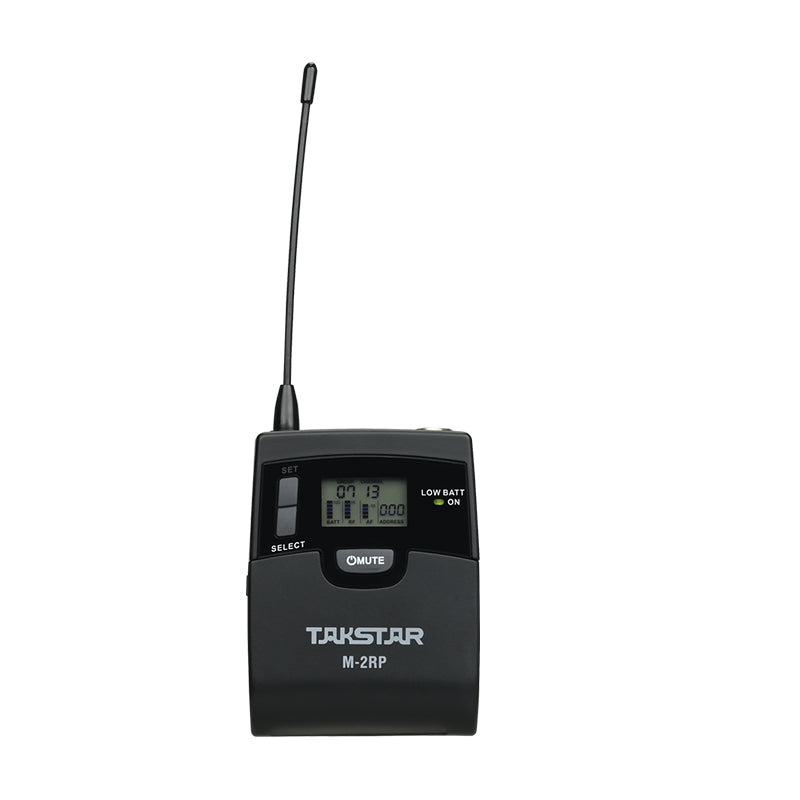

Bodypack Transmitter
• Frequency Range: 516-558MHz
• Frequency Bandwidth: 42MHz
• Maximum Deviation: ±60kHz
• Gain Adjustment Range: 0/-10/-20/-30/-40 dB
• RF Power: 10mW/30mW/50mW
• Frequency Response: 50Hz-16kHz (±3dB)
• Display Type: LED
• Battery Spec: 2×1.5V AA alkaline
• Operating Time: >8 hours
• Product Weight: Approx. 90g (excl. batteries)

Note: The above data are measured by Takstar laboratory which has the final interpretation right!
